Lifecycle Status

ACTIVE (Last Updated: 5 days ago)

Factory Lead Time

6 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

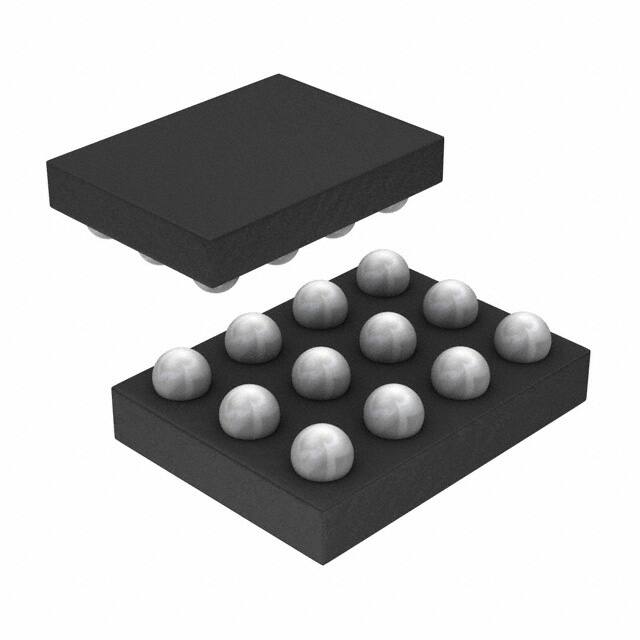

Package / Case

12-WFBGA

Number of Pins

12

SwitchingFrequency

2MHz

Operating Temperature

-30°C~85°C TA

Packaging

Tape & Reel (TR)

JESD-609 Code

e1

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

12

ECCN Code

EAR99

Type

DC DC Regulator

Terminal Finish

Tin/Silver/Copper (Sn/Ag/Cu)

Applications

Camera Flash

Additional Feature

NO OF SEGMENTS CONSIDERED FOR 400 MILLI AMP

Terminal Position

BOTTOM

Terminal Form

BALL

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Supply Voltage

3.6V

Terminal Pitch

0.5mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

LM3555

Number of Outputs

1

Qualification Status

Not Qualified

Max Output Current

400mA

Power Supplies

3.6V

Nominal Supply Current

3.5mA

Output Current

500mA

Max Supply Current

3.5mA

Quiescent Current

3.5mA

Voltage - Output

9.96V

Topology

Step-Up (Boost)

Min Input Voltage

2.5V

Max Input Voltage

5.5V

Input Characteristics

STANDARD

Internal Switch(s)

Yes

fmax-Min

0.4 MHz

Dimming

I2C

Number of Segments

2

Multiplexed Display Capability

NO

Features

OVP

Height

675μm

Length

2mm

Width

1.8mm

Thickness

675μm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
